YGF-GEL80 960Wh 500W Portable Solar Power Station with 12V 80Ah GEL Battery

Technical specifications

960Wh portable solar energy storage system with a 12V 80Ah deep-cycle GEL lead-acid battery and 500W listed AC output. Brochure-listed pure sine wave inverter, built-in LED light and LCD for selected household backup and off-grid applications. Includes AC, 3 DC, 2 USB-A and 2 USB-C output connections. Solar panels and AC charger configuration must be confirmed separately. Request samples, branding options, MOQ and a wholesale quotation from YAGUFE.

YAGUFE reference SKU

YGF-GEL80

Capacity variant

12V 80Ah

Battery chemistry

Deep-cycle GEL lead-acid battery

Nominal battery voltage

12V

Battery capacity

80Ah

Nominal battery energy

960Wh

Listed AC output power

500W

Inverter waveform

Pure sine wave (brochure-listed)

Listed cycle life

600 cycles at 100% depth of discharge (supplier-listed; confirm test conditions and end-of-life criterion)

AC output configuration

110V / 60Hz or 220V / 50Hz, selectable order configurations; confirm voltage, frequency and socket version

DC output

3 x 12V barrel ports (5.5 x 2.1mm); maximum total output current 5A listed in the English table. Confirm per-port/shared allocation.

USB-A output

2 ports; 5V / 9V / 12V; maximum 18W listed. Confirm per-port/shared allocation.

USB-C output

2 ports; 5V / 9V / 12V; maximum 30W listed. Confirm per-port/shared allocation.

DC charging input

15-25V; up to 10A; XT60 connector

Charging methods

Solar charging through the compatible DC input; AC-adapter charging listed. Confirm solar panel and external charger specifications and whether they are included.

Built-in light

LED light (brochure-listed)

Display

LCD

Protection

Multiple protection functions listed; individual protection thresholds are not specified

Housing material

ABS

Dimensions

330 x 173 x 200mm

Operating temperature

-15 to +50 degrees C (listed operating range; charging-temperature limits are not specified)

Load selection

Select devices within the AC/DC output ratings; confirm starting loads and usable runtime for the selected configuration.

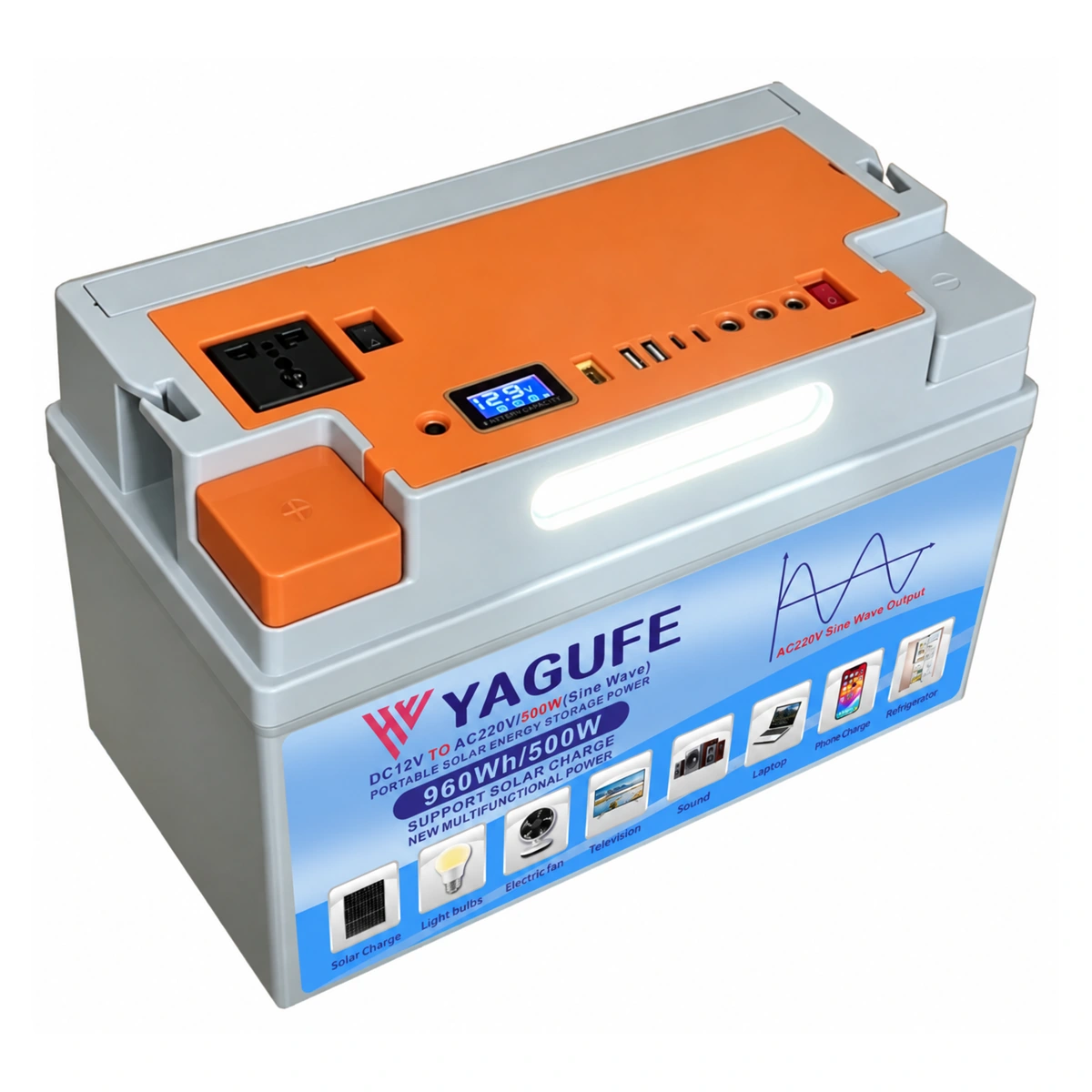

Branding preview

Main image shows a YAGUFE branding visualization based on the original product photo. Final printed branding, configuration and packaging are subject to order confirmation.

Specifications are based on the supplied brochure. Confirm battery configuration, inverter waveform, output ratings, accessories, samples and MOQ before ordering. The main product image is a YAGUFE branding visualization; confirm final printed branding and packaging before ordering.
