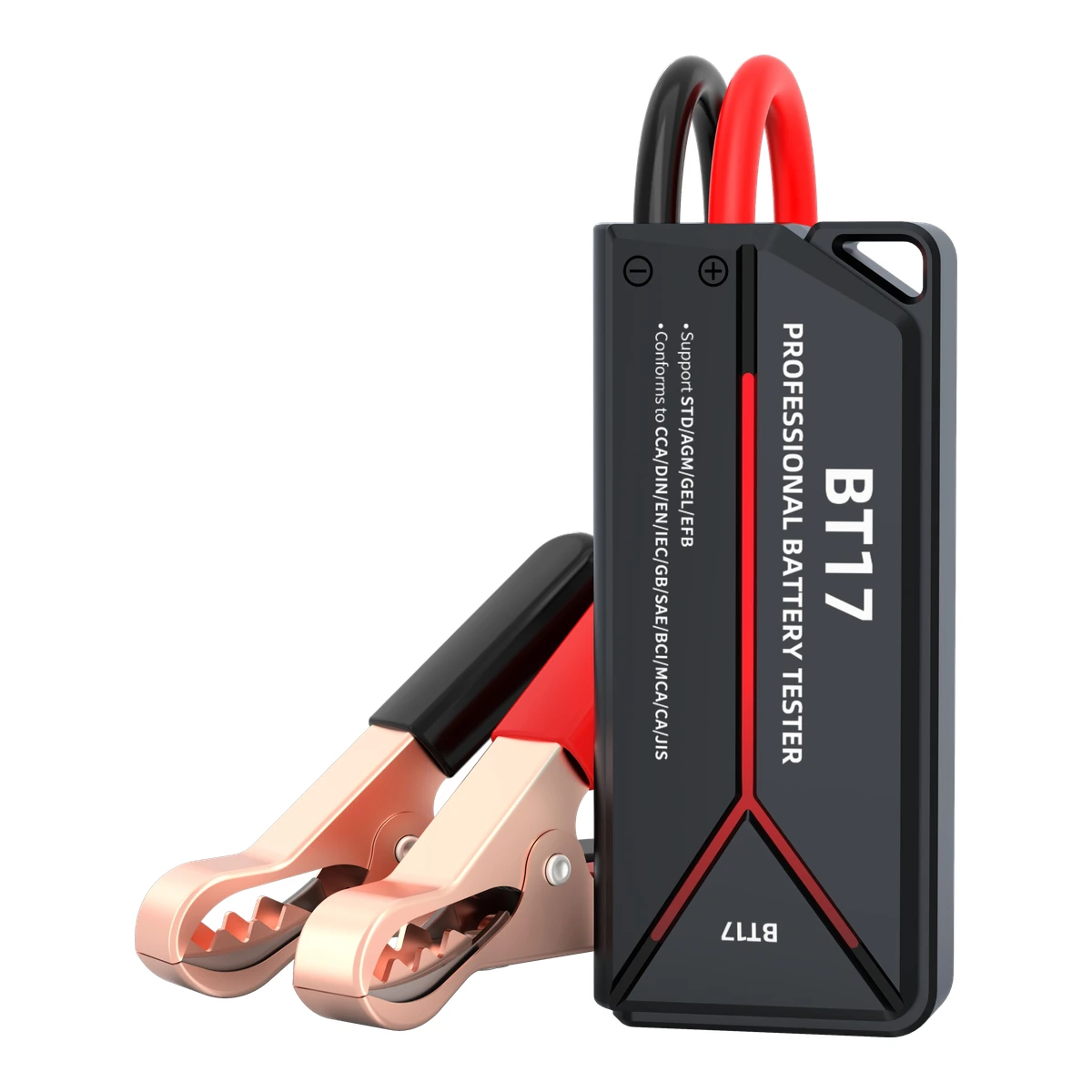

BT17 Bluetooth 5.1 12V/24V Battery Tester with SOC SOH and 100-2000 CCA Analysis

Technical specifications

BT17 Bluetooth 5.1 12V/24V Battery Tester with SOC SOH and 100-2000 CCA Analysis. Bluetooth 5.1 / 25-language app. 12V/24V / 100-2000 CCA. Four-wire testing / 49 cm leads. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model

BT17

Battery test voltage

12V / 24V

Battery measurements

State of charge (SOC), state of health (SOH), internal resistance 0.00-99.99 mOhm, voltage 0.00-30V and cold-cranking current 100-2000 CCA

System tests

Maximum load, starting / cranking load and charging system

Voltage monitoring

Battery voltage curve

Measurement method

Four-wire testing

Firmware and protection

OTA firmware updates; reverse-polarity protection (supplier listed)

Wireless app

Dedicated wireless app with 25 languages; confirm compatible app and platform

Indicator

Multicolor breathing light

Customization

Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Bluetooth name and MAC address options are listed.

Material

ABS

Operating voltage (listed)

6V-30V

Operating current (listed)

25-27mA

Operating temperature (listed)

-20 C to 70 C

Storage temperature

-40 C to 80 C

Bluetooth version

5.1

Test lead length

49cm

Supported battery types

STD conventional lead-acid; AGM valve-regulated; GEL; EFB flooded batteries

Product dimensions (excluding cable)

83 x 37 x 18mm

Net product weight

115g

Retail box dimensions

98 x 186 x 45mm

Packed gross weight

200g

Master carton dimensions

510 x 310 x 410mm

Carton quantity (not MOQ)

60pcs

Carton gross weight

12kg

Documents listed by supplier

FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Battery-test applications

Cars, trucks, buses, diesel vehicles, motorcycles, boats, yachts and ATVs with supported 12V/24V batteries. This battery-test application list does not extend OBD vehicle compatibility.

Battery rating standards

CCA,DIN,EN,IEC,GB,SAE,BCI,MCA,CA,JIS

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
