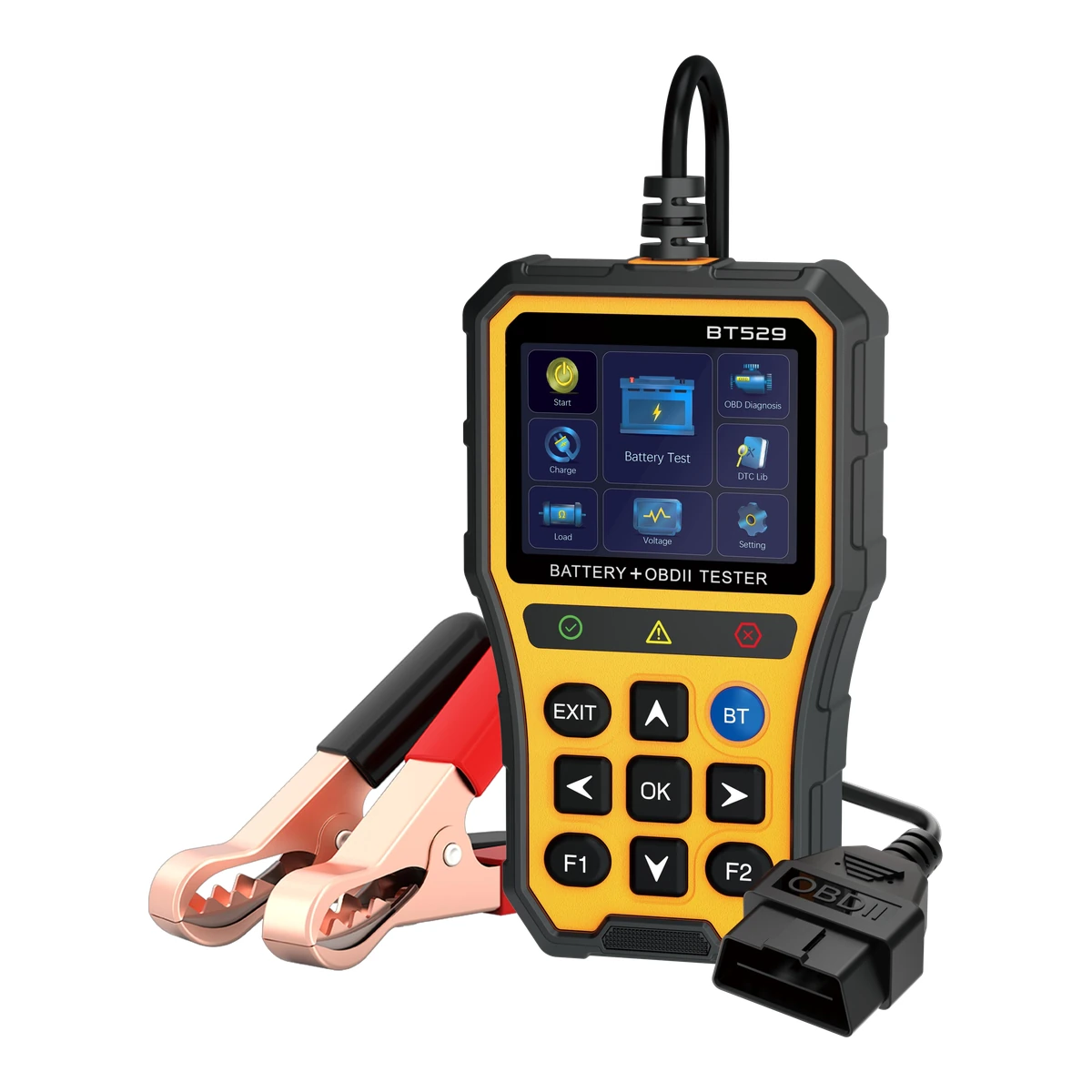

BT529 2-in-1 OBD2 Scanner and 12V/24V Battery Tester with 2.8-inch IPS Display

Explore BT529 automotive electronics sourcing.

OBD2 diagnostics + 12V/24V battery tests
2.8-inch IPS / Bluetooth 5.1
100-2000 CCA battery test range

Wholesale MOQConfirm with sales

OEM MOQConfirm with sales

Price / lead timeBy quotation

Samples / brandingAsk for availability

Supplier-provided configuration. Please confirm the exact model, color, samples and wholesale terms with sales.

MODEL DETAILS

Technical specifications

BT529 2-in-1 OBD2 Scanner and 12V/24V Battery Tester with 2.8-inch IPS Display. OBD2 diagnostics + 12V/24V battery tests. 2.8-inch IPS / Bluetooth 5.1. 100-2000 CCA battery test range. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model: BT529
Controller: YM1141; supplier-described GPU Turbo technology
Display / interface: 2.8-inch IPS color display; automatic screen brightness; UI 3.0
OBD protocol support: Nine OBD-II protocols (supplier listed); supported 12V gasoline vehicles only
Battery test voltage: 12V / 24V
Battery measurements: State of charge (SOC), state of health (SOH), internal resistance 0.00-99.99 mOhm, voltage 0.00-30V and cold-cranking current 100-2000 CCA
System tests: Maximum load, starting / cranking load and charging system
Voltage monitoring: Battery voltage curve
Additional battery test: Voltage ripple measurement
App: YMOBD app; 25 languages
Device languages: 14: Chinese, English, Russian, French, German, Spanish, Portuguese, Italian, Finnish, Dutch, Polish, Japanese and Korean, Thai
Controls: Ergonomic housing and silicone keys; supplier-stated key durability 500,000 operations, supporting report on request
Electronic manual: QR-access English electronic manual
Customization: Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Language, Bluetooth name and MAC address options are also listed.
Material: ABS+TPU+silicone
Display: 2.8-inch IPS color display
Operating voltage (listed): 5V-30V
Operating current (listed): 63mA
Operating temperature (listed): 0 C to 60 C
Storage temperature: -20 C to 70 C
Bluetooth version: 5.1
Vehicle / application reference: 12V gasoline vehicles: US 1996 onward / Europe 2003 onward, as listed by supplier. Confirm make, model, year and protocol before ordering.
Product dimensions (excluding cable): 146 x 86 x 27mm
Net product weight: 345g
Retail box dimensions: 205 x 130 x 46mm
Packed gross weight: 463g
Master carton dimensions: 430 x 360 x 315mm
Carton quantity (not MOQ): 30pcs
Carton gross weight: 14.7kg
Documents listed by supplier: FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.
Battery-test applications: Cars, trucks, buses, diesel vehicles, motorcycles, boats, yachts and ATVs with supported 12V/24V batteries. This battery-test application list does not extend OBD vehicle compatibility.
Supported battery types: STD conventional lead-acid; AGM valve-regulated; GEL; EFB flooded batteries
Battery rating standards: CCA,DIN,EN,IEC,GB,SAE,BCI,MCA,CA,JIS

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
