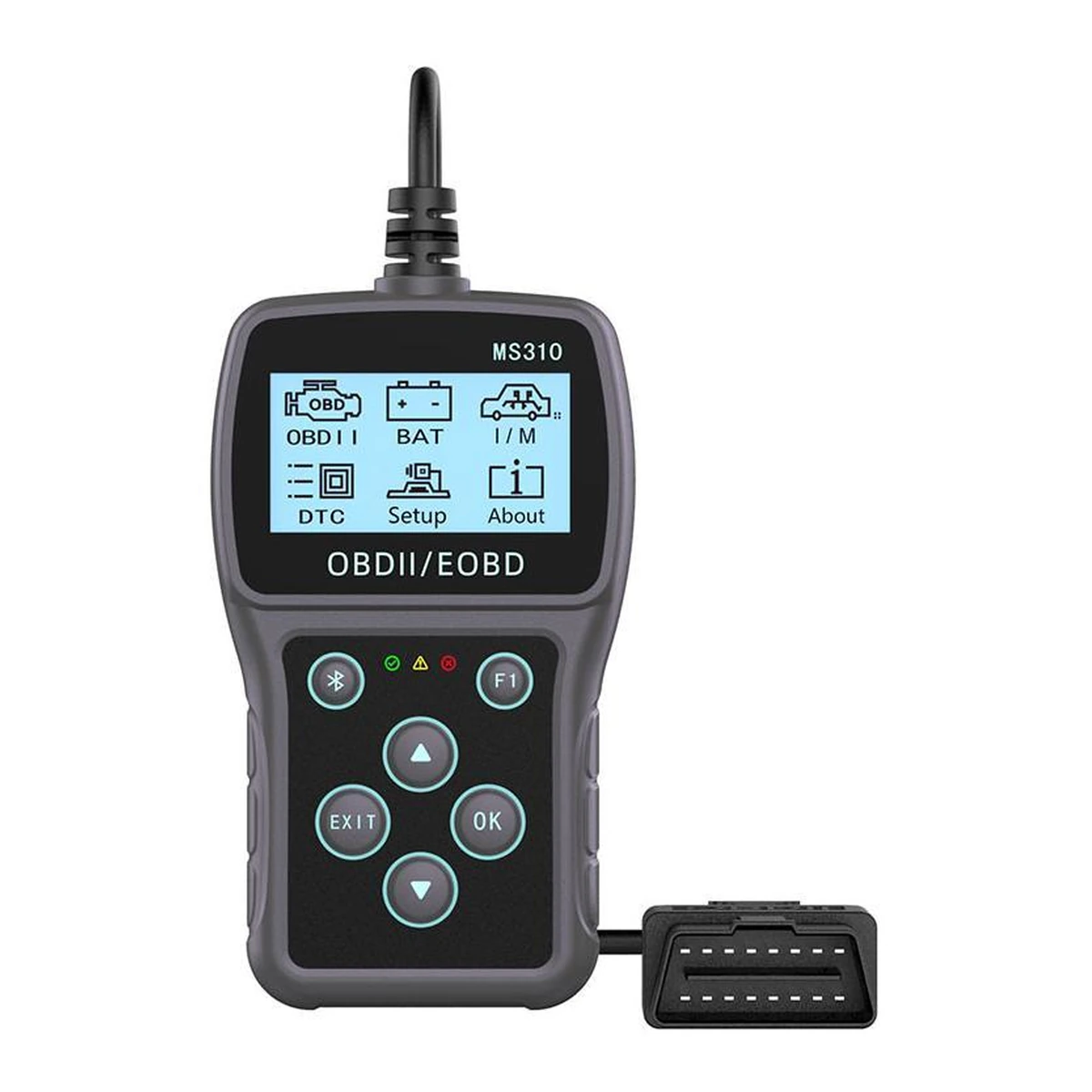

MS310 Bluetooth OBD2 Scanner with 2.4-inch Monochrome Display and YMOBD App

Technical specifications

MS310 Bluetooth OBD2 Scanner with 2.4-inch Monochrome Display and YMOBD App. 2.4-inch monochrome TFT. Bluetooth 5.1 / YMOBD app. 11 device languages / 25 app languages. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model

MS310

Controller

YM1131

Display / interface

2.4-inch TFT monochrome display

OBD protocol support

Nine OBD-II protocols (supplier listed); confirm exact supported vehicle and diagnostic functions

Electronic manual

QR-access English electronic manual

Device languages

11: Chinese, English, Russian, French, German, Spanish, Portuguese, Italian, Finnish, Dutch and Polish

App

YMOBD app with 25 languages

Additional customization

Bluetooth name and MAC address options

Customization

Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Device language options are listed.

Material

ABS

Display

2.4-inch TFT monochrome display

Operating voltage (listed)

4V-30V

Operating current (listed)

40mA-50mA

Operating temperature (listed)

0 C to 60 C

Storage temperature

-20 C to 70 C

Bluetooth version

5.1

Vehicle / application reference

12V gasoline vehicles: US 1996 onward / Europe 2003 onward, as listed by supplier. Confirm make, model, year and protocol before ordering.

Product dimensions (excluding cable)

131 x 75 x 23mm

Net product weight

154g

Retail box dimensions

200 x 130 x 28mm

Packed gross weight

270g

Master carton dimensions

430 x 360 x 315mm

Carton quantity (not MOQ)

50pcs

Carton gross weight

13.5kg

Documents listed by supplier

FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
