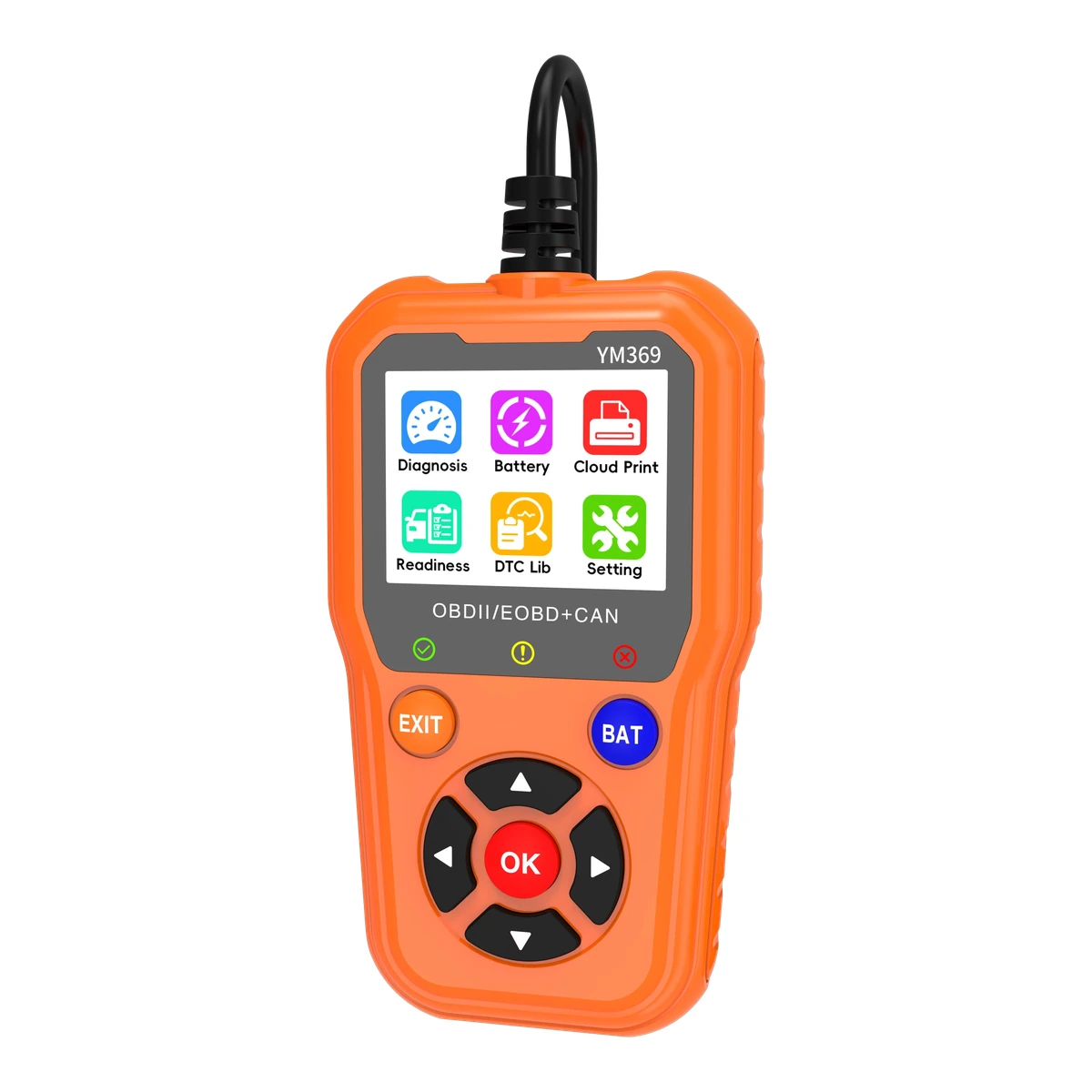

YM369 / W12 OBD2 Diagnostic Scanner with 2.4-inch IPS Display and Cloud Printing

Explore YM369 / W12 automotive electronics sourcing.

2.4-inch IPS color display
OBD2 diagnostics / battery test
Cloud printing / 13 languages

Wholesale MOQConfirm with sales

OEM MOQConfirm with sales

Price / lead timeBy quotation

Samples / brandingAsk for availability

Supplier-provided configuration. Please confirm the exact model, color, samples and wholesale terms with sales.

PRODUCT VIEWS

Explore views and colors.

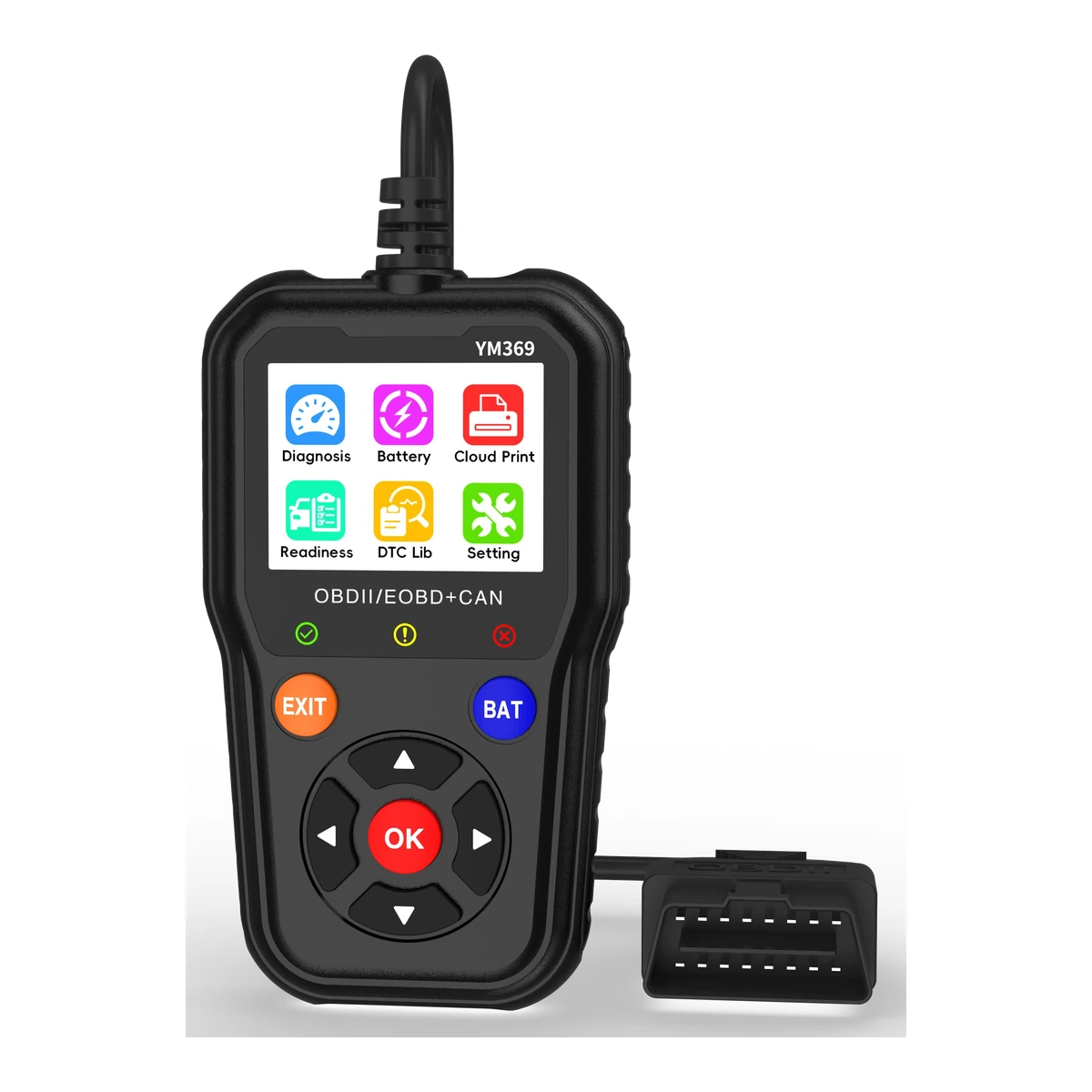

YM369 / W12 additional product or color reference from the supplied catalog — Original catalog product view. Confirm selected model, color, configuration and included accessories.

MODEL DETAILS

Technical specifications

YM369 / W12 OBD2 Diagnostic Scanner with 2.4-inch IPS Display and Cloud Printing. 2.4-inch IPS color display. OBD2 diagnostics / battery test. Cloud printing / 13 languages. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model: YM369 / W12
Controller: YM1141
Display / interface: 2.4-inch IPS color display; UI 2.0
OBD protocol support: Nine OBD-II protocols (supplier listed); confirm exact supported vehicle and diagnostic functions
Electronic manual: QR-access English electronic manual
Device languages: 13: Chinese, English, Russian, French, German, Spanish, Portuguese, Italian, Finnish, Dutch, Polish, Japanese and Korean
Model naming: YM369 and W12 are listed together in the supplied model field; confirm ordered model designation
Additional functions: Battery performance test and cloud printing
Controls: Ergonomic grip; silicone keys with metal dome contacts
Customization: Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Device language options are listed.
Material: ABS+silicone
Display: 2.4-inch IPS color display
Operating voltage (listed): 5V-20V
Operating current (listed): 50mA
Operating temperature (listed): 0 C to 60 C
Storage temperature: -20 C to 70 C
Vehicle / application reference: 12V gasoline vehicles: US 1996 onward / Europe 2003 onward, as listed by supplier. Confirm make, model, year and protocol before ordering.
Product dimensions (excluding cable): 135 x 76 x 22mm
Net product weight: 161g
Retail box dimensions: 200 x 130 x 25mm
Packed gross weight: 245g
Master carton dimensions: 430 x 360 x 315mm
Carton quantity (not MOQ): 50pcs
Carton gross weight: 13kg
Documents listed by supplier: FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.

Source with confidence.

Include quantity, destination market, plug type, packaging, and delivery date. Request the current specification sheet, actual photos, test documents, and sample terms before ordering.
