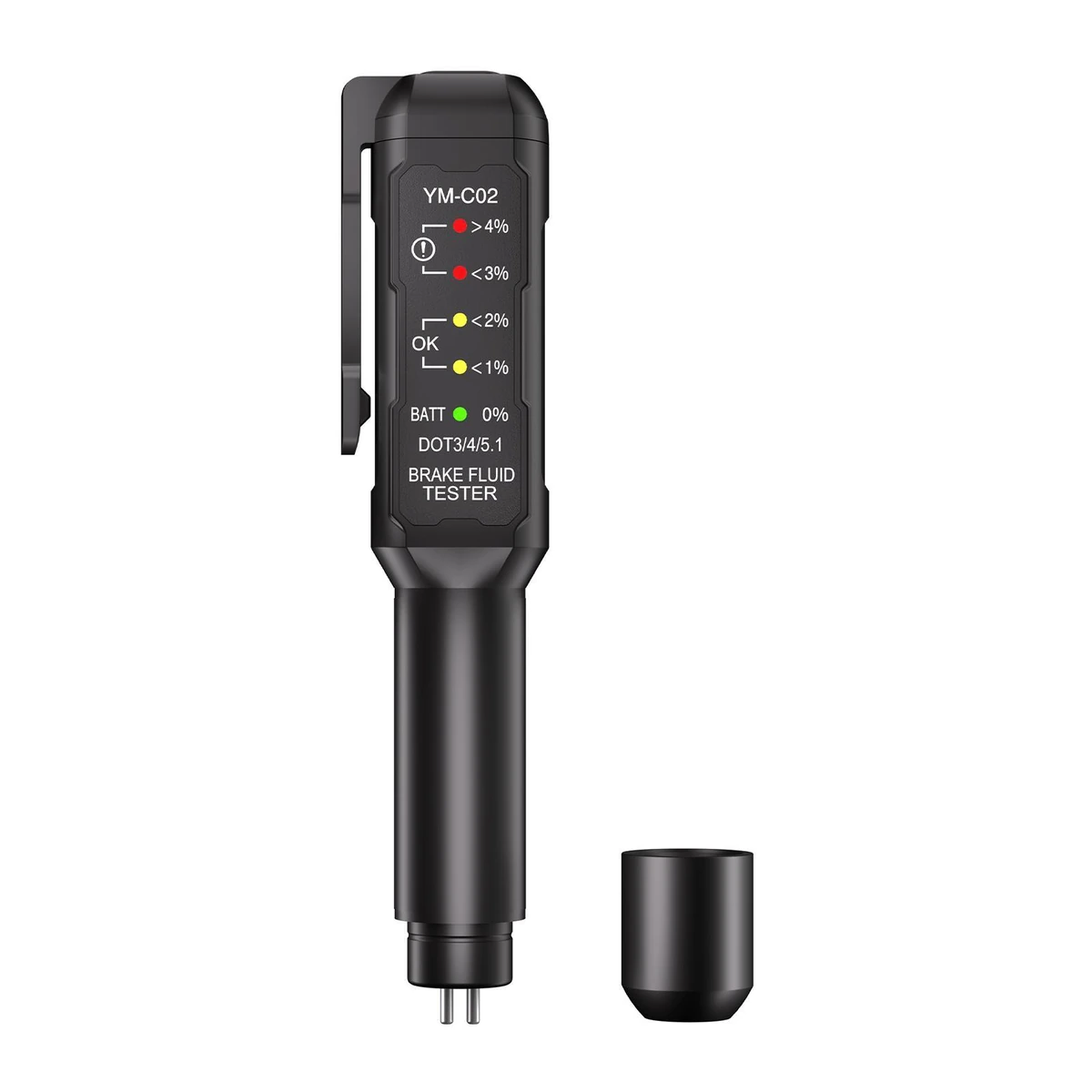

YMC02 Brake Fluid Tester Pen with Five-Level LED Display and Auto Sleep

Explore YMC02 automotive electronics sourcing.

DOT3 / DOT4 / DOT5.1 fluids
Five-color / five-level LED indication
10-second automatic sleep

Wholesale MOQConfirm with sales

OEM MOQConfirm with sales

Price / lead timeBy quotation

Samples / brandingAsk for availability

Supplier-provided configuration. Please confirm the exact model, color, samples and wholesale terms with sales.

PRODUCT VIEWS

Explore views and colors.

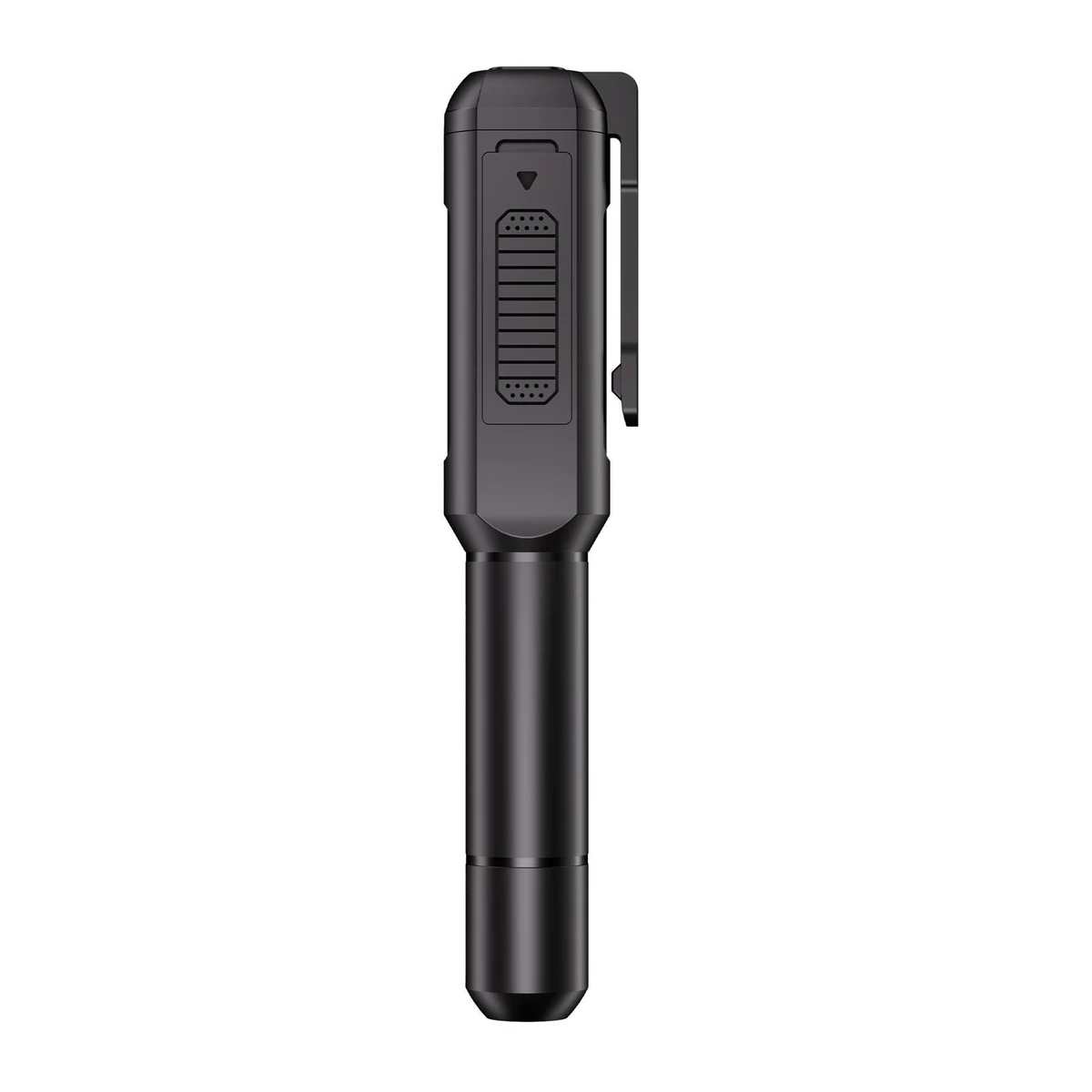

YMC02 additional product or color reference from the supplied catalog — Original catalog product view. Confirm selected model, color, configuration and included accessories.

MODEL DETAILS

Technical specifications

YMC02 Brake Fluid Tester Pen with Five-Level LED Display and Auto Sleep. DOT3 / DOT4 / DOT5.1 fluids. Five-color / five-level LED indication. 10-second automatic sleep. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model: YMC02
Supported brake fluids: DOT3 / DOT4 / DOT5.1
Probe accuracy (supplier listed): Measurement error less than +/-3 per mille (0.3%); supporting test report on request
Indicator: Five different LED colors with five-level indication
Power saving: Automatic sleep after 10 seconds
Design: Compact pen with side clip
Customization: Supplier-listed options: packaging, color, logo and model name. Confirm sample, MOQ and lead time.
Material: ABS
Operating voltage (listed): 1V-1.5V
Operating current (listed): 4mA-30mA
Operating temperature (listed): 0 C to 55 C
Storage temperature: -20 C to 60 C
Power supply (listed): 1 x AAA battery
Vehicle / application reference: Brake fluid testing at 0-50 C; use the supported DOT grades listed for this model.
Product dimensions: 153 x 30 x 25mm
Net product weight: 36g
Retail box dimensions: 156 x 34 x 28mm
Packed gross weight: 51g
Master carton dimensions: 520 x 280 x 140mm
Carton quantity (not MOQ): 100pcs
Carton gross weight: 5.3kg
Documents listed by supplier: FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.

Source with confidence.

Include quantity, destination market, plug type, packaging, and delivery date. Request the current specification sheet, actual photos, test documents, and sample terms before ordering.
